At present, we can supply 1050/1060/1100 pure aluminium coll, 3003/3105/3004 anti-rust aluminium coll, 5052 corrosion resistance aluminium roll, etc. With beautiful apperance, bright and clean. And good suitable for pipelines’ insulation covered application.
It also called thermal insulation aluminium roll, heat insulation aluminium roll.
The properties of these aluminum alloys provide the required strength to resist in-service abuse, but can be easily fabricated and installed. The attractive mill finish maintains its sharp appearance, a necessity for any insulation project.
Aluminum’s resistance to atmospheric corrosion makes its use ideal, even in marine, chemical, industrial environments, or in industries processing food or beverages. Aluminum has an excellent resistance to corrosion which reduces cost through long service, without maintenance or painting.
Aluminum jacketing Coil is available in Mill finish, Smooth, Stucco Embossed, Corrugated & with moisture barrier consisting of polykraft.
Alloy |
Temper |
Specification(mm) |
|||
|---|---|---|---|---|---|
Thickness |
Width |
Length |
Remarks |
||
1050 1060 1100 3003 3004 3105 5052 |
H14 |
0.3-3.0 |
800-1500 |
30meters, 50meters,< 100meters, 150meters, Any length |
Produce various specifications according to customers' requirements |
standard thickness : from 0.35 to 1.2 mm
standard width : 914 /1000/1200/1220mm
Finishes: Smooth, Stucco Embossed (Orange Peel), Mill finish, with polykraft paper.
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Ni |
Zn |
Ti |
Other |
Al |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
each |
total |
||||||||||||
1050 |
0.25 |
0.40 |
0.05 |
0.05 |
0.05 |
- |
- |
0.05 |
0.03 |
0.03 |
- |
99.50 |
|
1060 |
0.25 |
0.35 |
0.05 |
0.03 |
0.03 |
- |
- |
0.05 |
0.03 |
0.03 |
- |
99.60 |
|
1100 |
Si +Fe:0.95 |
0.05-0.20 |
0.05 |
- |
- |
- |
0.03 |
- |
0.05 |
0.15 |
99.00 |
||
3003 |
0.60 |
0.70 |
0.05-0.20 |
1.0-1.5 |
- |
- |
- |
0.10 |
- |
0.05 |
0.15 |
Remain |
|
3004 |
0.30 |
0.70 |
0.25 |
1.0-1.5 |
1.8-1.3 |
- |
- |
0.25 |
- |
0.05 |
0.15 |
Remain |
|
3105 |
0.60 |
0.70 |
0.30 |
0.30-0.8 |
0.20-0.8 |
0.20 |
- |
0.40 |
0.10 |
0.05 |
0.15 |
Remain |
|
5052 |
0.25 |
0.40 |
0.10 |
0.10 |
2.2-2.8 |
0.15-0.35 |
- |
0.10 |
- |
0.05 |
0.15 |
Remain |
|
Application: Use for Insulation Purpose, Heat Insulation, Thermal Insulation. Such as aluminum coils with heat-insulation of the pipelines in the power plant and chemical industry.
Thermal insulation aluminium roll |
|||||
Alloy |
Temper |
Specification(mm) |
|||
Thickness |
Width |
Length |
Surface |
||
1050 1060 1100 |
H14 |
0.1-2.0 |
800-1500 |
30meters, 50meters, |
Mill finish, Flat, embossed, |
Other alloy and size can be produced accoring to customers’ requirement.

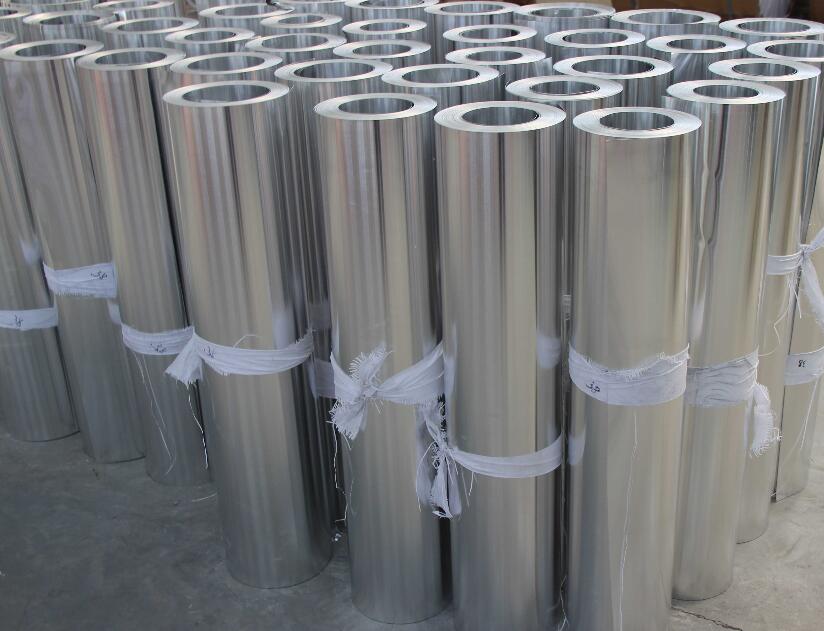

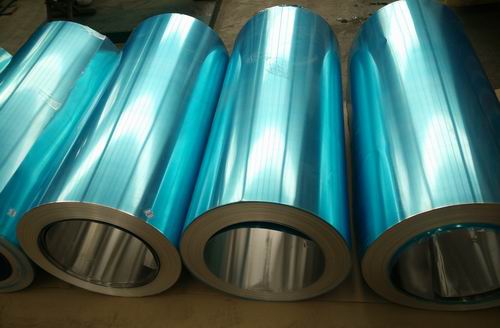

| Mill finish | With Blue Protect Film |
 |
 |
| Embossed | |
 |
Aluminum Jacketing Coil with Polykraft for Heat Insulation |
|||||
Alloy |
Temper |
Specification(mm) |
|||
Thickness |
Width |
Length |
Surface |
||
1050 1060 1100 |
H14 |
0.3-1.2 |
1000-1500 |
30meters, 50meters, |
Flat, Stucco Embossed |
RE: Produce various specifications according to customers' requirements
wear resistance, moisture resistance, good thermal insulation. Aluminium coil with water-proof polykraft paper back Polykraft consists of one layer of one mil polyethylene film with a protective layer of 80g/m2 virgin kraft paper. The moisture barrier is factory applied by attaching the jacketing by continuous lamination to the full width of the metal. The moisture barrier is used to prevent moisture and corrosives in the insulation from coming into direct contact with the metal jacketing surface and causing galvanic or chemical corrosion.

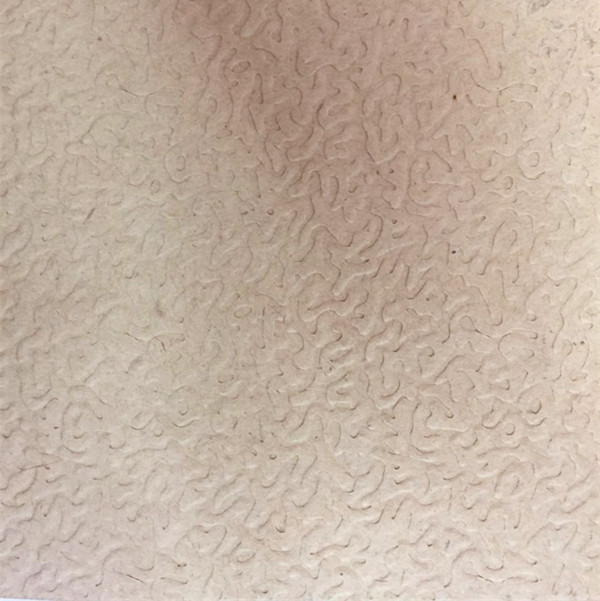

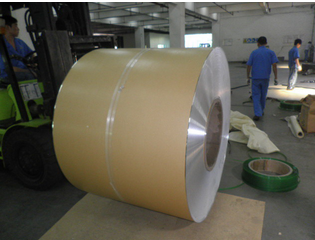

| surface :smooth/Flat | surface :stucco emboss/orange peel |
 |
 |
Aluminum has many advantages that make it attractive as a jacket materials for insulation.
1. aluminium density is 2.71g/cm³.each square meter of aluminium is light, in this way to save lots of raw materials to reduce the cost. Its low density and excellent formability allow it to be used in thicker sections that improve its damage resistance and make it more installation friendly.
2. because of aluminium natural feature, bright and clear, to make the apperance beautiful. And no need to worry it rust in the later period.
3. convenient for construction. Aluminium is easy for forming process, such like bending and winding. Greatly improve the working efficiency.
4. Aluminium’s formability give the designer choices in surface finish that include smooth and embossed. Insulation aluminum stucco embossed sheet coil, its rougher appearance of the finish tends to hide minor imperfections and is often chosen for that reason. As for the aluminium jacketing, haomei aluminium recommend using alloy 3105 or 3003 for jacketing insulation.
Insulation aluminum stucco embossed sheet coil, this stucco-like surface texture hides small imperfections and scratches caused by physical damage during or after installation. This finish also reduces reflectivity while still looking very professional. Lastly, the use of stucco embossed finish provides a small increase to the regidity and strength of the alumininum jacketing.
